Axia Alloys Modular Roll Cage Strap Clamp

Description

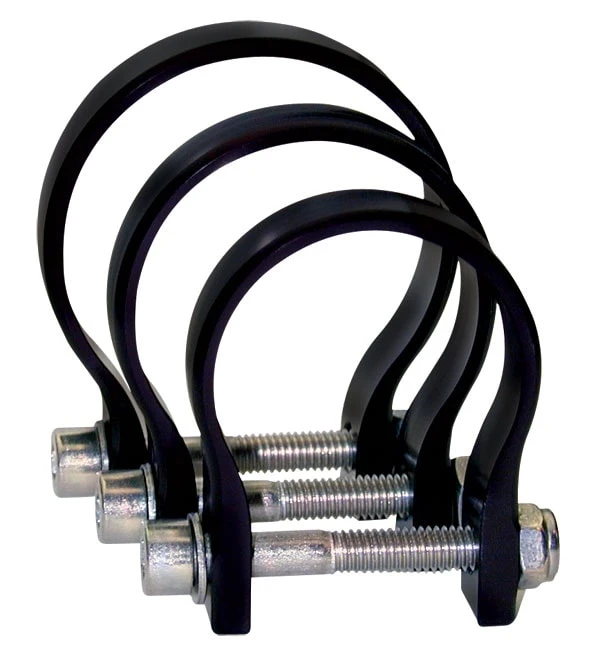

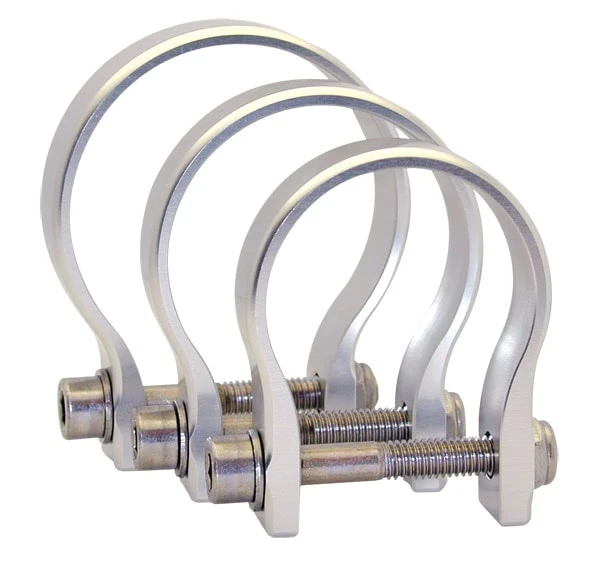

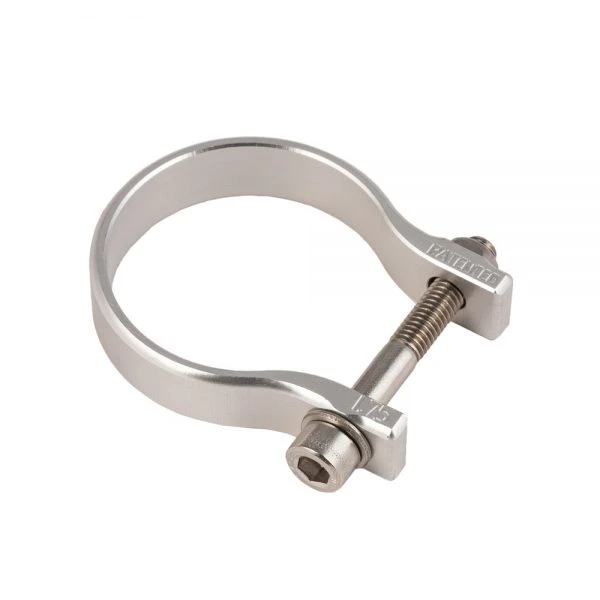

Axia Alloys Modular Roll Cage Strap Clamp

These low profile strap clamps are the core of the Axia Alloys Modular Clamping System.

These powerful Billet clamps snap around any size of roll cage maintaining a low profile around the tubing for clearance under windshields, roofs,  and other accessories.

Factory Roll Cage Tubing Sizes:

POLARIS
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)
General (Pro Fit cage NOT ROUND)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND)1.75” rear harness bar only
Ranger(Pro Fit cage NOT ROUND) Use 9” Bolt On mirror for rearview
Polaris RZR 170 1.25″
RZR steering column 1.5”

YAMAHA
YXZ 1000 1.75″ Perimeter Top crossbars 1.5”
Rhino Perimeter 1.75” Top Crossbars 1.5”
Rhino Steering column 1.5”
Viking and Viking  6 seater  2.0”
Wolverine Perimeter 2.0” Top Crossbars 1.5”

KAWASAKI
Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”

HONDA
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer  500 1.625”
Big Red 1.625”

ARCTIC CAT
Wildcat / Wildcat 4 1.75″
Prowler (must have aftermarket cage installed)

CANAM
Maverick and Maverick 4 seat 2.0”
Maverick X3 1.85″
Commander 2.0”
